PERMA-STRAP

Carbon Fiber Reinforcement

for your foundation

• Tensile Strength - 545 ksi

• Tensile Modulus - 33.5 Msi

• Elongation @ Break - 1.4%

• Tow Count - 12,000

• Tensile Strength (per inch width) - 4714 lbs

• Tensile Strength - 9000 psi

• Elongation @ Break - 2.5%

• Adhesion

Concrete - Excellent

Steel - Excellent

• Chemical Resistance

Acetic Acid - Good

Sulfuric Acid - Excellent

Hydroxide - Excellent

xylene - good

• 8 hr Immersion in 150 deg water - No Effect

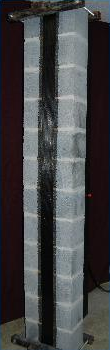

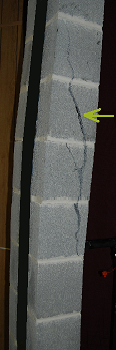

Before the carbon fiber stap was applied to this 8' block pier, when a force of 330 lbs was applied to the center of the the wall, it failed. Now with the Standard 4 applied to the same wall, it took 3500 lbs to cause failure. As see in the picture below, the wall did not fail because of the strap, but rather a shear fracture through the block.
